The vertical line has a pouring machine and a pouring machine for static pressure line. Among them, the casting machine for vertical line can be divided intotwo types:bottomcasting machine andtiltingcasting machine. The static pressure line casting machine will not be described in detail.

1.  Bottom injection type casting machine

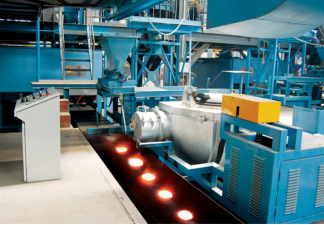

The iron outlet of the bottom injection type pouring machine is located at the bottom of the bag, and the iron liquid flow is opened and closed by the lifting and lowering of the plug rod. The plug stem and nozzle brick are made of refractory materials and can be replaced after being worn. The bottom injection type casting machine is easy to operate, the plug rod only moves up and down, and can be matched with the high productivity production line to complete the molten iron casting. Because the iron outlet is located at the bottom of the bag, the slag removal ability is strong, and the casting scrap rate due to slag inclusion is reduced.

The bottom injection type pouring machine includes bottom injection type ladle, random cover, plug rod lifting mechanism, longitudinal moving cart, horizontal moving cart, electric control system and operation table, etc. Advanced and efficient machine, the casting speed of up to 500 type / time, for high-speed molding lines vertical parting line continuous casting, casting quality and increase productivity.



The bottom injection type casting machine produced by our company mainly has the following models and specifications.

1.  Bottom injection casting machine (insulation type)

model	CRD05	CRD10	CRD15	CRD20
Ladle capacity	500kg	1000kg	1500kg	2000kg
heating power	250kW	300kW	350kW	400kW



2.  Bottom pouring machine

model	CR05	CR10	CR15	CR20
Ladle capacity	500kg	1000kg	1500kg	2000kg



3.  Bottom pouring machine (flip type)

model	CRF05	CRF10	CRF15	CRF20
Ladle capacity	500kg	1000kg	1500kg	2000kg

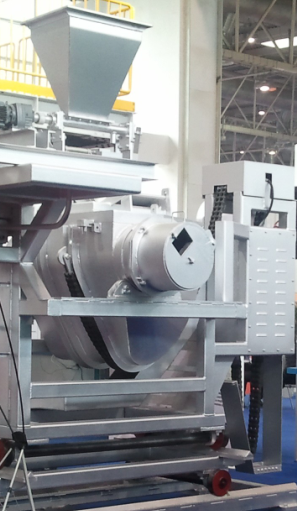

1.  Fan-shaped tilting pouring machine

This pouring machine is a fan-shaped ladle pouring machine specially matched with vertical lines. The pouring operation mode is the master-slave type, that is, the handle pouring method assisted by the automatic pouring procedure to maximize the working environment.

This casting machine is a non-insulation type left and right tilting casting machine. The cross section of the ladle is fan-shaped, and the molten iron outlet is at the center of the fan-shaped circle, that is, the center of rotation. The tilting angular velocity controlled by the servo motor moves according to the typical flow -time curve to achieve the best effect of simulating manual pouring. The quick-removable gate has slag blocking bricks (fixed when enameled), fully mechanical transmission and simple structure. The casting machine can move in two directions of XY, the moving vehicle moves in the X direction (the direction perpendicular to the molding line), and the moving vehicle moves in the Y direction (the direction parallel to the molding line), which are controlled by the variable frequency motor.
